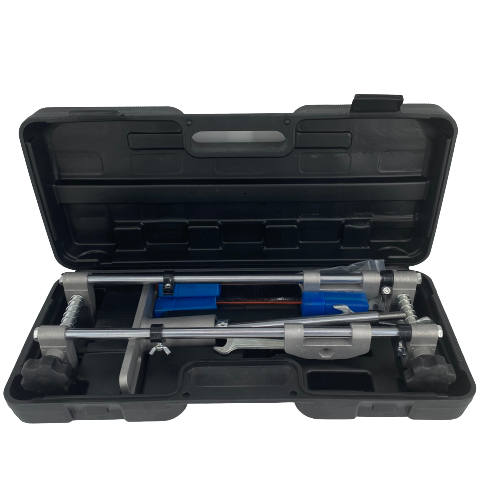

Mortise Lock Jig Set

Direct Hardware


Features & Details

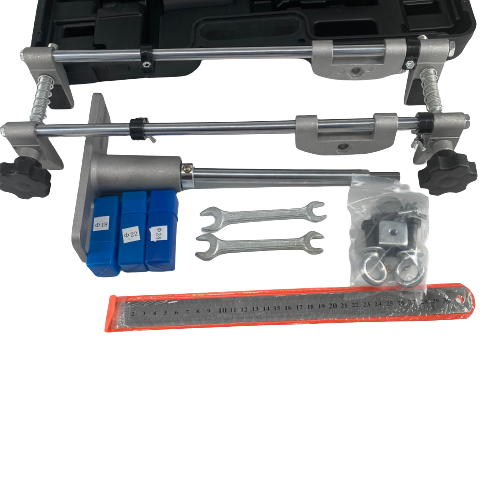

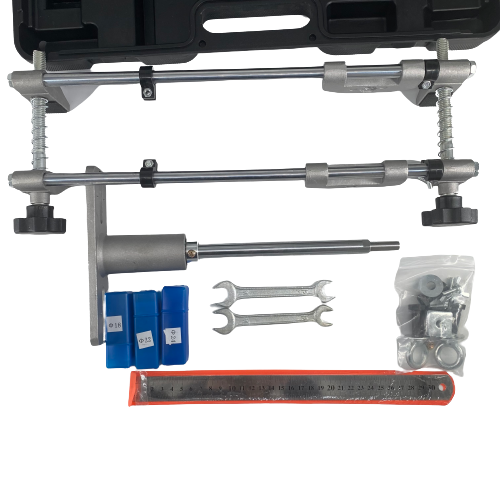

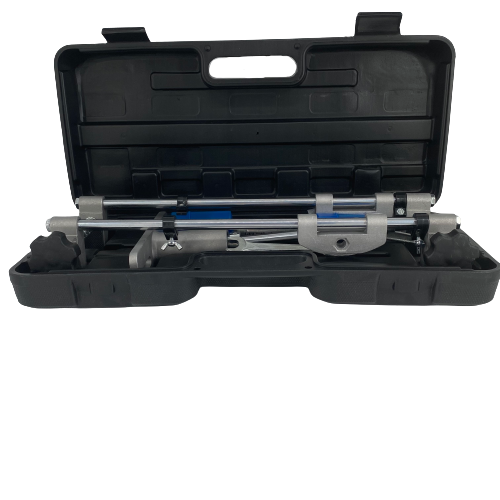

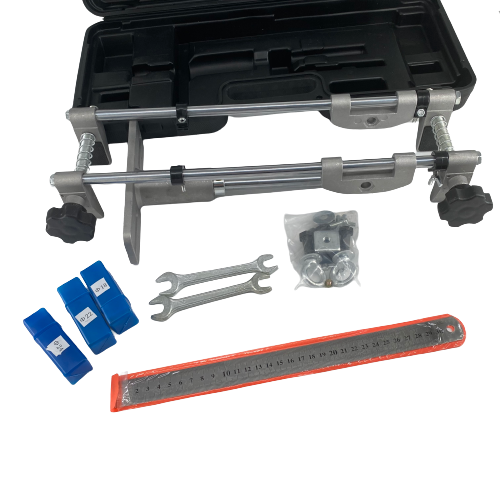

 - The door lock jig kit includes a mortiser, 3 M10 cutters, 2 spanners, a ruler, a plastic suitcase, and 10 other accessories. It has a simple construction but is practical in drilling.

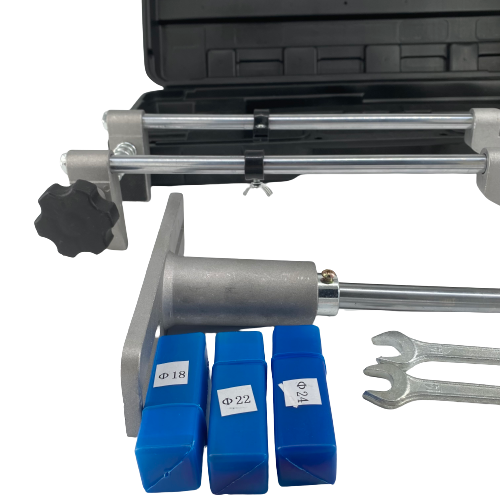

 - The mortice lock fitting jig will come with 3 tungsten steel cutters, 0.79"/0.87"/1" (18/22/25 mm) of sizes. They are sturdy and sharp enough to make clean cuts.
 - The DBB lock mortiser is easy to assemble and install on the door, even for beginners. With simple marks on the door and a power drill, you can use it with ease.

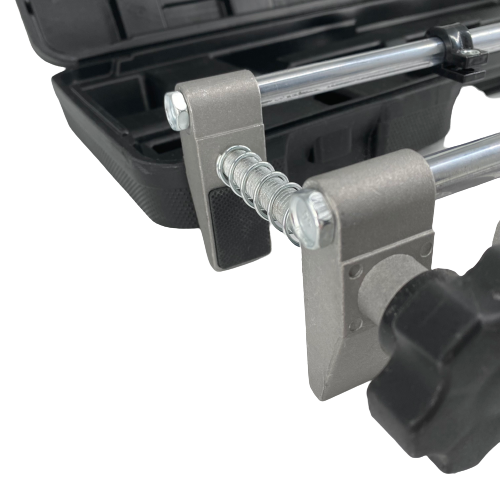

 - The door lock mortiser kit features parallel slide rails that can completely clamp the door, ensuring a stable drilling process.
 - The mortise jig is used on wooden and aluminum doors with a thickness up to 5.3"/13.5 cm. It is suitable for installing hotel doors and security doors or door lock modifying.


 - Maximum Lock Body Distance : 9.4"/240 mm
 - Maximum Clamping Thickness: 3.5"/90 mm
 - Maximum Slotted Depth: 5.5"/140 mm
 - Drill Cutter Sizes: M10x18 mm, M10x22 mm, M10x25 mm
 - Edge Diameter: 0.87"/22 mm
 - Shank Diameter: 1"/25 mm
 - Drill Type: Split Pose
 - Material: Tungsten, Aluminum alloy, Plastic
 - Gross Weight: 9.1 lbs/4.2 kg
 - Package Dimensions (LxWxH): 18.5"x8.7"x3.9"/47x22x10 cm

Package Content

 - 1 x Jig Kit Door Lock Mortiser
 - 3 x M10 Cutters (18 mm, 22 mm, 25 mm)

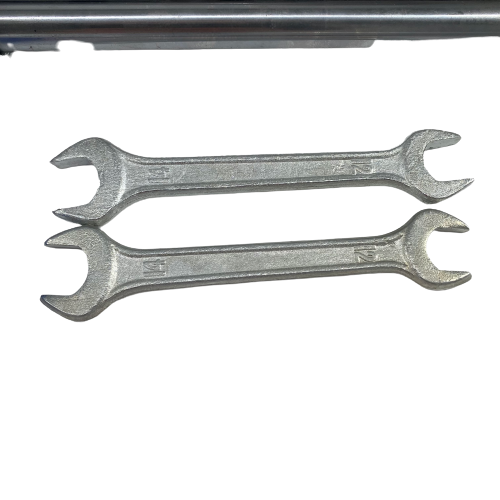

 - 2 x Spanners
 - 1 x Ruler

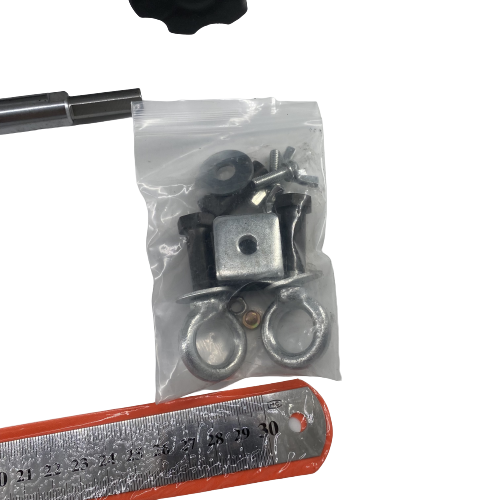

 - 10 x Accessories

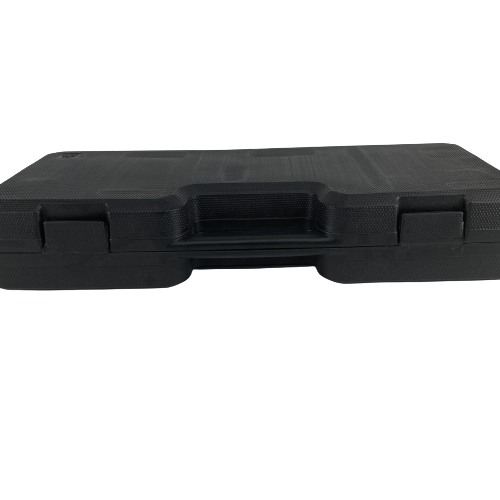

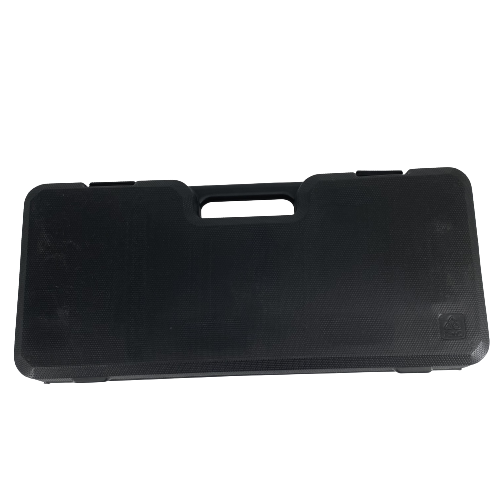

 - 1 x Plastic Suitcase
