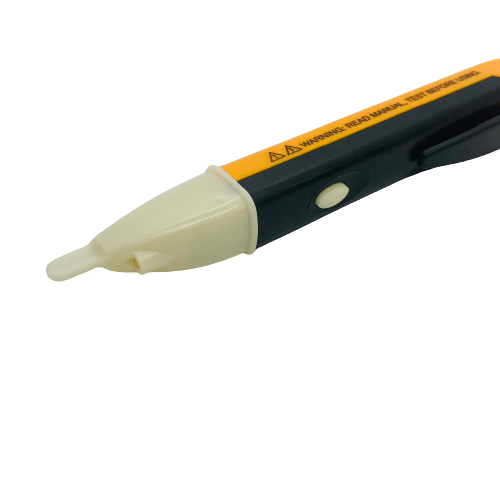

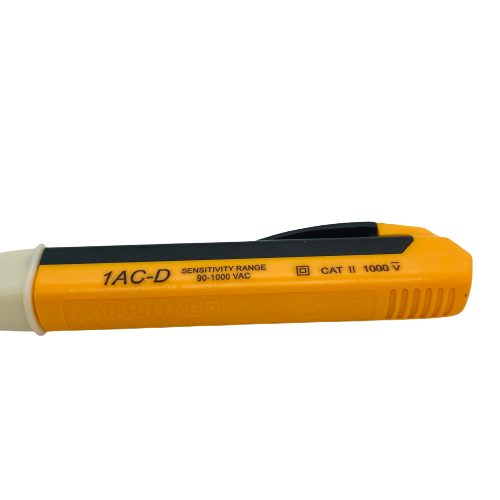

AC Voltage Detector

Direct Hardware


Frequency Range: 50 to 500 Hz

Test Voltage Range: 90-1000V AC

Safety Rating : CAT II 1000v

 Powered By: 2 x AAA Batteries (Not included)

Totally insulated, no exposed metal or conductive parts

Product size: 150mm x 25mm x 15mm

Ideal design for testing power cables, circuit breakers, wall sockets, junction boxes, fuses, etc

How to use: AC non-contact voltage testers are easy to use - just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there is voltage present. Can quickly and easily test for energized circuits.

Just press the button, white LED light can be always on when there is absence of voltage

"Beep" sound and red flashing LED would indicate the presence of voltage
